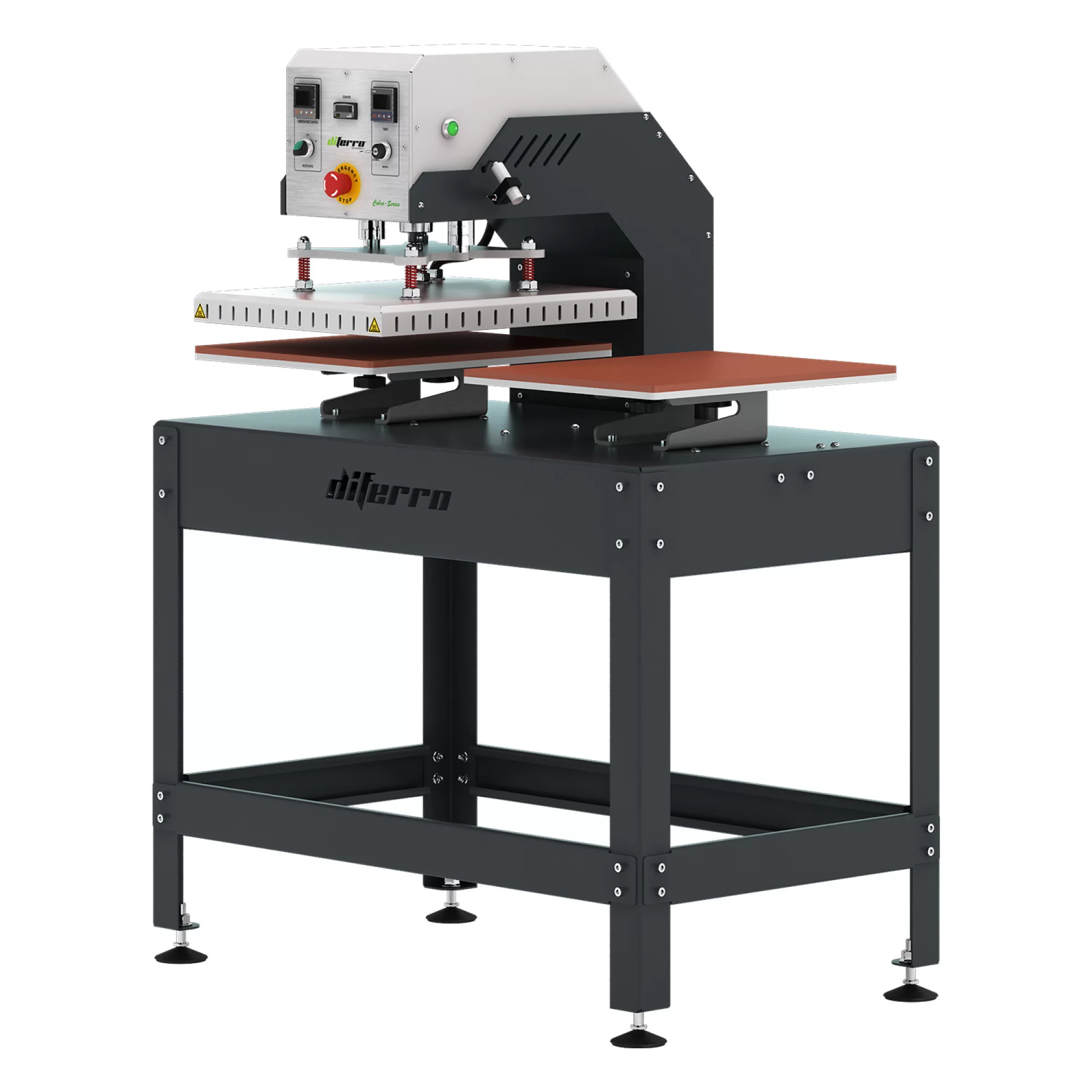

Our press machines provide flawless performance with perfect heat distribution in your business. Left and right movement is provided by a motor supported by a rack and pinion gear. The perfect design requires less air, therefore no air compressor is needed. Having two plates saves a significant amount of time.
The plates are easy to remove and can be replaced with plates of different sizes. High pressure is mechanized with an adjustable pneumatic system for pressure. While doing other cliché prints, you can prepare your second cliché for sublimation. The manual/automatic module provides two different working modes.
Heat control is provided by a high precision digital thermostat. You can adjust the time of the print applied to the fabric with a digital timer. It is also equipped with a digital counter to keep track of the number of finished products.
Plates are positioned at standard working height. If desired, detachable feet allow you to work on a table or countertop. Heat press machines comply with CE safety standards.
Usage Areas
Stone Printing
Flock Printing
Foil Printing
Vinyl Printing
Screen Printing
Offset Printing
Technical Specifications
Heating System | Heating Table |
Maximum Heat | 230°C |
Average Heating Time | 20 minutes |
Power Input | AC 220V - 1Ph 50/60 Hz. |
Air Pressure | Min. 6 - Max. 10 |
Applied Pressure | 600 g/cm2 - 10 bar g/cm2 |
System Type | Pneumatic |
Electric System | AC Inverter |
Safety | Emergency Button |
